- General Information
- Manufacturer
- Hikvision
- Manufacturer Website Address
- http://www.hikvision.com
- Brand Name
- Hikvision
- Product Type
- Network Camera

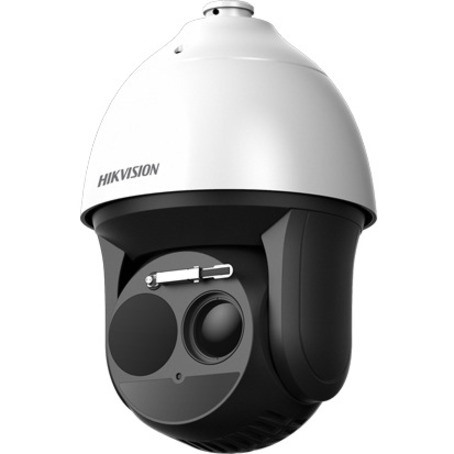

Hikvision DS-2TD4166-50/V2Thermal & Optical Bi-spectrum Network Speed Domeequipped with built-in GPU whichsupport intelligent behavior analysis algorithm, can realize high precision VCA detection and real-time alarm.Itis applied to perimeter defense and fire-prevention purposes in critical infrastructures such as: airport, railway, prison, power station, 4Sstores, and so on. The pre-alarm system helps you discover unexpected events immediately and protects you from property loss.
Smart Function (Thermal Imaging)
- Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD < 40mk (@25°C, F#=1.0)
- Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
- Smart tracking linkage: thermal view and optical view
- Powerful behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit
- Reliable temperature exception alarm function
- Advanced fire detection algorithm
Thermal Imaging Module Function
- 640*512resolution, high sensitivity sensor, support contrast adjustment
- Support shutter adjustment in various modes
- 3D DNR, 15palettes of color adjustable, image detail enhancement
- Technical Information
- Recording Formats
- HD
- HD Recording
- Yes
- Night Vision Distance
- 656.17 ft
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Monochrome
- Video
- Video Formats
- H.264+
- H.264
- H.265
- H.265+
- MJPEG
- Maximum Video Resolution
- 1920 x 1080
- Video Signal Format
- NTSC
- PAL
- Lens
- Lens Type
- Zoom
- Minimum Focal Length
- 5.70 mm
- Maximum Focal Length
- 205.20 mm
- Optical Zoom
- 36x
- Maximum Thermal Focal Length
- 1.97"
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Form Factor
- Dome
- Height
- 16.1"
- Width
- 8.7"
- Diameter
- 10.5"
- Weight (Approximate)
- 17.64 lb
