- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/us/en/
- Brand Name
- Lenovo
- Product Type
- 10Gigabit Ethernet Card
Delivers high-performance networking using an economical cabling infrastructure
The explosive growth in virtualization is driving the need for a faster net-work. Meanwhile, network-intensive applications, such as video and real-time media, are also demanding more bandwidth.

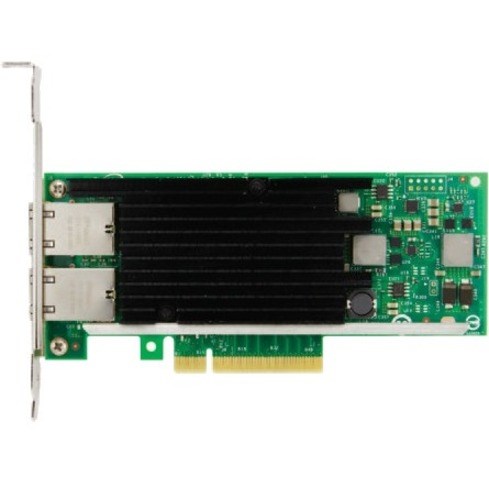

The Intel X540 Dual Port 10BaseT Adapter Family for IBM® System x® is an excellent choice for addressing the needs of today's data center networks. The Intel X540 network adapter family supports 10GBASE-T connec-tors that utilize RJ-45 ports over unshielded twisted pair cabling. Because these adapters are backward compatible with your existing 1000BASE-T switches, they greatly simplify your transition to 10 GbE technology.
- Warranty
- Limited Warranty
- 1 Year
- Interfaces/Ports
- Host Interface
- PCI Express x8
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- USB
- No
- Serial Port
- No
- Ethernet AUI
- No
- XJACK
- No
- PoE (RJ-45) Port
- No
- Number of Network (RJ-45) Ports
- 2
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 7
- Network & Communication
- Network Technology
- 10GBase-T
- Physical Characteristics
- Card Height
- Low-profile
- Form Factor
- Mezzanine
- Height
- 0.6"
- Width
- 6.6"
- Depth
- 2.7"
- Miscellaneous
- Software Included
- Operating Systems:
- Windows Server 2008
- Windows Server 2008 R2
- Windows 7
- Microsoft Vista
- Platform Supported
- PC
