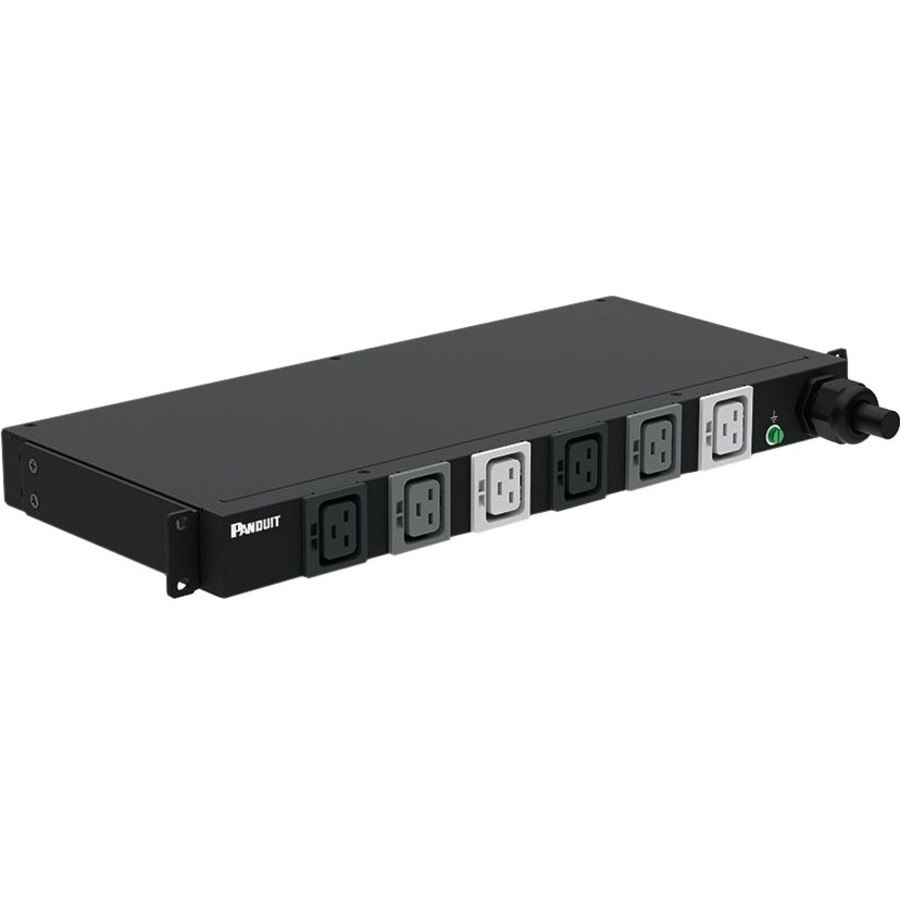

The 30A, 208V horizontal 3 Phase WYE PDU has (6) C19 receptacles, a 10' (3m) power cord with a NEMA L21-30P plug, and measures 1.7"H x 17.5"W x 7.8"D (43.2mm x 444.5mm x 198.1mm). UL Listed. Color: Black
- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- Panduit
- Packaged Quantity
- 1
- Product Type
- PDU
- Technical Information
- PDU Type
- Basic
- Phase
- Three Phase
- Plug/Connector Type
- NEMA L21-30P
- Receptacle Type
- IEC 60320 C19
- Receptacle Detail
- 6 x IEC 60320 C19
- Power Description
- Input Voltage
- 230 V AC
- Output Voltage
- 230 V AC
- Power Rating (VA)
- 8600 VA
- Input Current
- 30 A
- Physical Characteristics
- Mounting Orientation
- Horizontal
- Mount Type
- Rack-mountable
- Rack Height
- 1U
- Height
- 1.7"
- Width
- 17.5"
- Depth
- 7.8"
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
