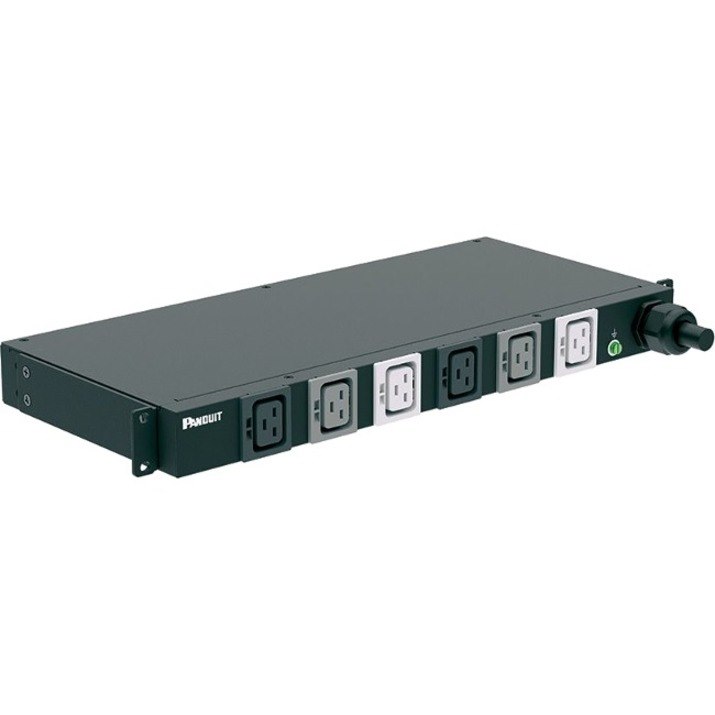

Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13, C19, or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- Panduit
- Product Line
- SmartZone
- Packaged Quantity
- 1
- Product Type
- PDU
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- PDU Type
- Basic
- Phase
- Single Phase
- Plug/Connector Type
- CS8265C
- Receptacle Type
- IEC 60320 C19
- Receptacle Detail
- 6 x IEC 60320 C19
- Protection Type
- Double Pole
- Power Description
- Input Voltage
- 230 V AC
- Output Voltage
- 208 V AC
- Output Voltage Range
- 120 V AC - 240 V AC
- Power Rating (VA)
- 8300 VA
- Input Current
- 50 A
- Management
- Remote Outlet Switching
- No
- Physical Characteristics
- Mounting Orientation
- Horizontal
- Mount Type
- Rack-mountable
- Rack Height
- 1U
- Height
- 1.7"
- Width
- 17.5"
- Depth
- 7.8"
- Miscellaneous
- Country of Origin
- India
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
