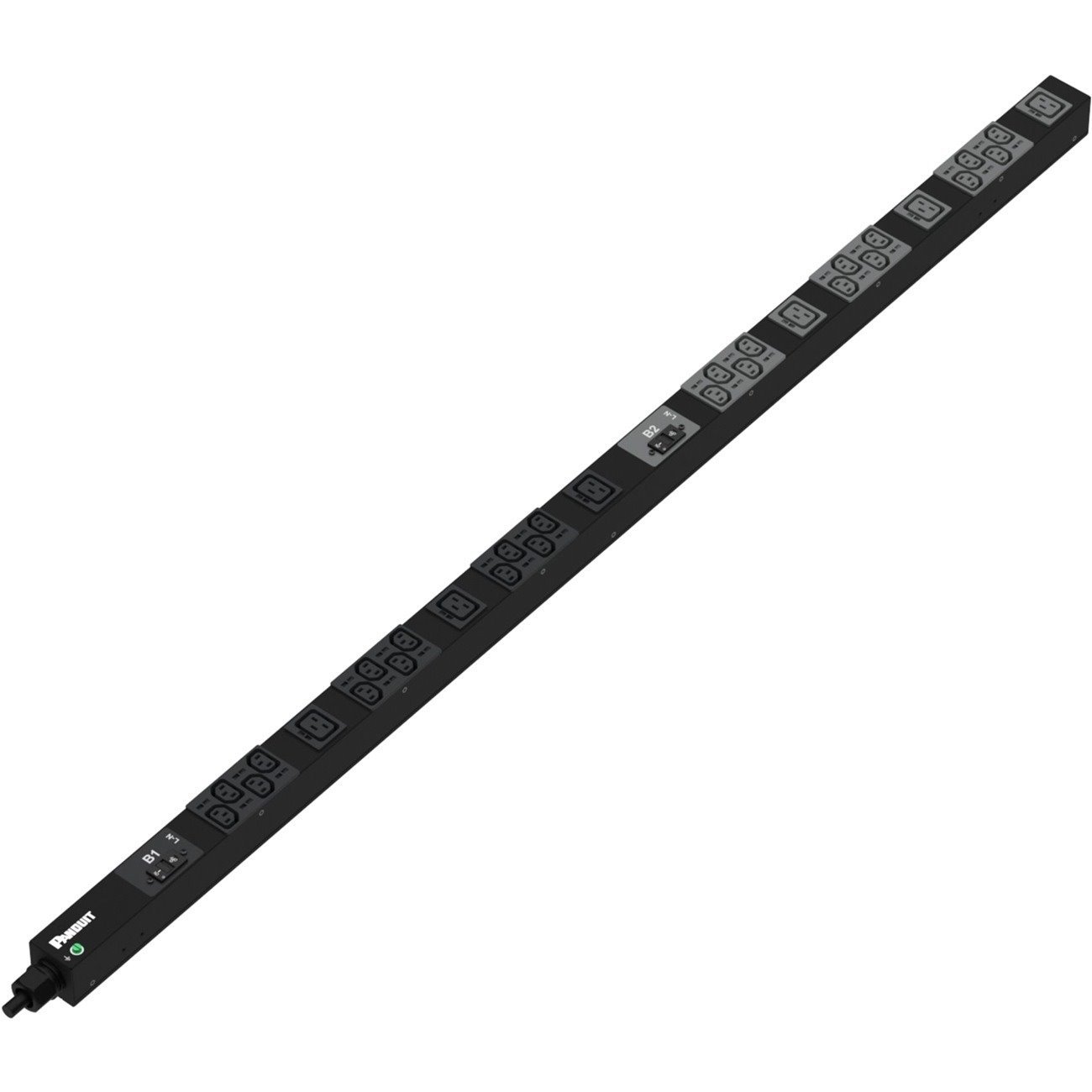

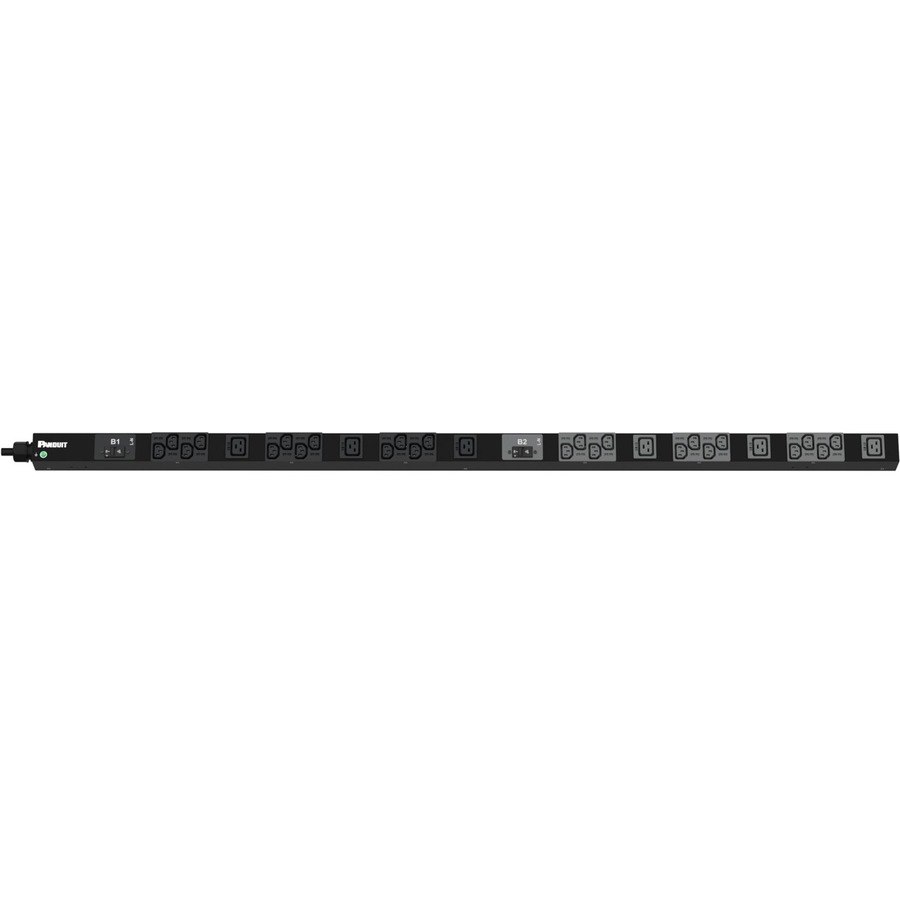

Panduit SmartZone Basic PDU

  • Part: 2251357
  • Model: P30B06M
$812.00

Availability

In Stock

  • General Information
    • Manufacturer
    • PANDUIT CORP
    • Manufacturer Website Address
    • http://www.panduit.com
    • Brand Name
    • Panduit
    • Product Line
    • SmartZone
    • Product Series
    • G5
    • Product Type
    • PDU

Panduit Basic Rack PDUs provide reliable, cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations.

Panduit Basic PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 54 outlets and come standard with a top fed 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.

  • Technical Information
    • PDU Type
    • Basic
    • Phase
    • Single Phase
    • Plug/Connector Type
    • IEC 60309 332P6
    • Receptacle Type
    • IEC 60320 C13
    • IEC 60320 C19
    • Receptacle Detail
    • 24 x IEC 60320 C13
    • 6 x IEC 60320 C19
  • Power Description
    • Output Voltage Range
    • 120 V AC - 240 V AC
    • Power Rating (VA)
    • 7400 VA
    • Input Current
    • 32 A
  • Physical Characteristics
    • Color Family
    • Black
    • Product Color
    • Black
    • Mounting Orientation
    • Vertical
    • Mount Type
    • Rack-mountable
    • Rack Height
    • 0U
    • Width
    • 2"
    • Depth
    • 2.1"
    • Length
    • 58.7"
